HAWKSMOOR
HAWKSMOOR 33CC PETROL MULTI TOOL
MODEL NUMBER: DGJ330H/62625
BAR CODE: 5059303002827
2021
BAR CODE: 5059303002827
2021

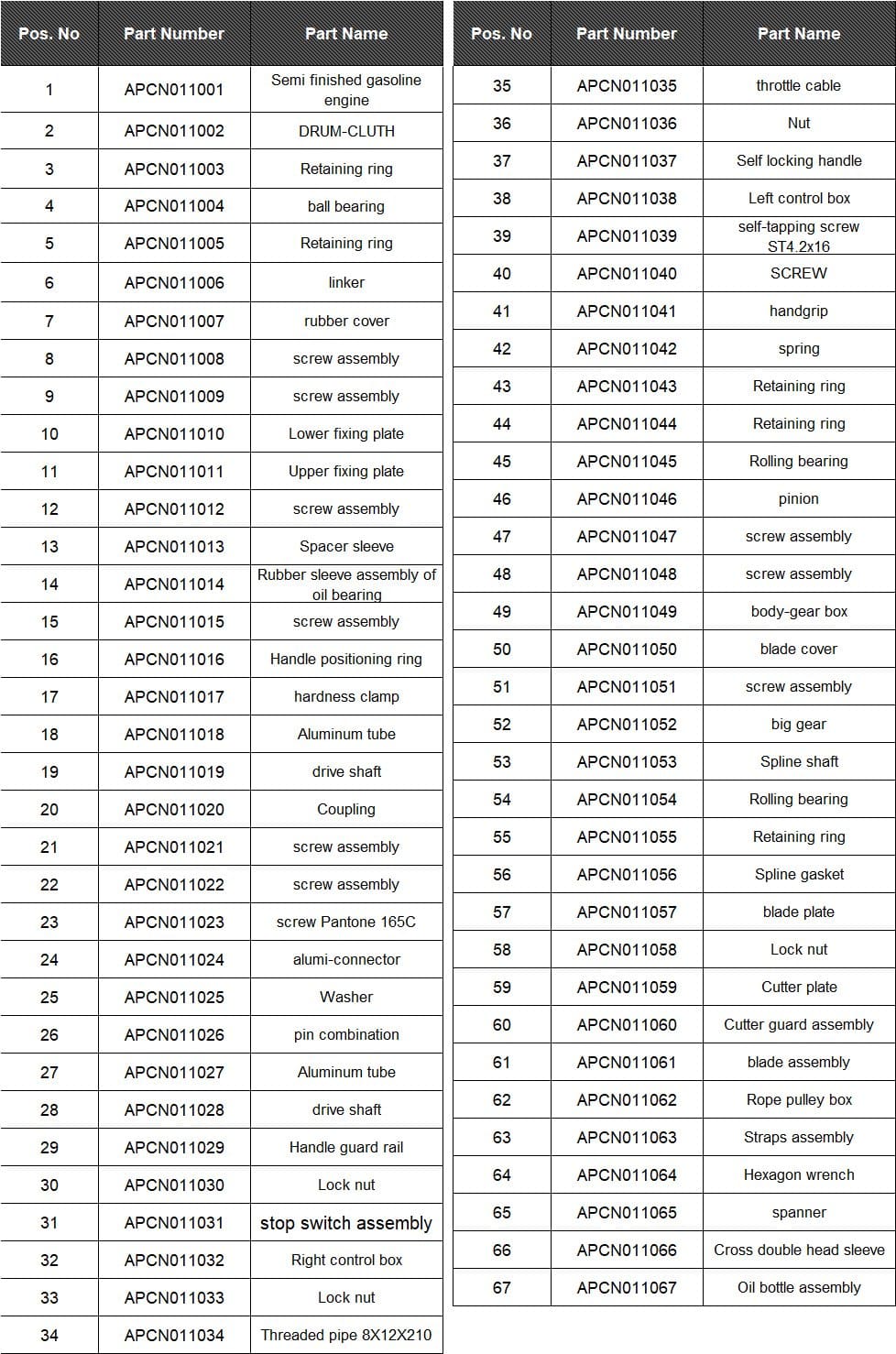

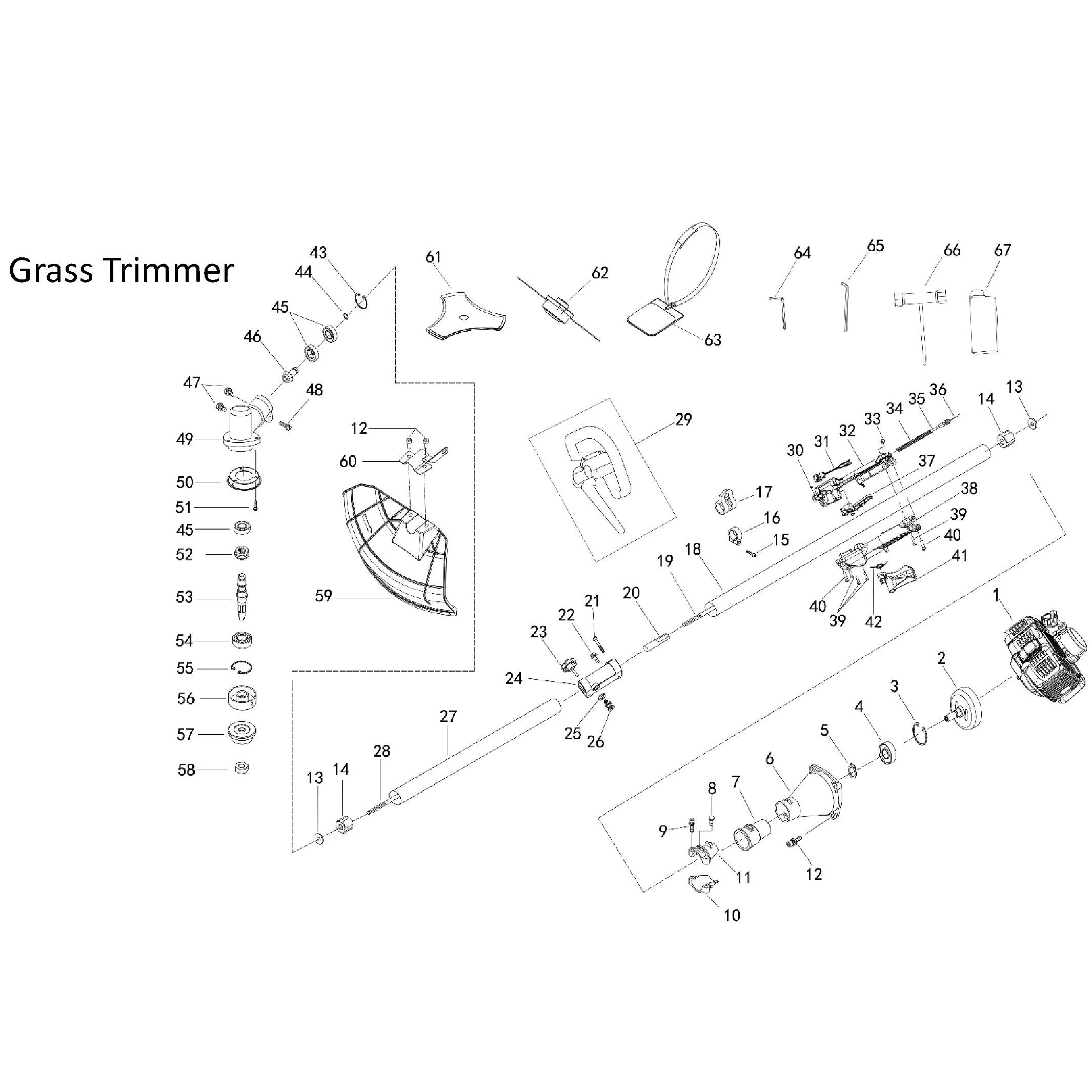

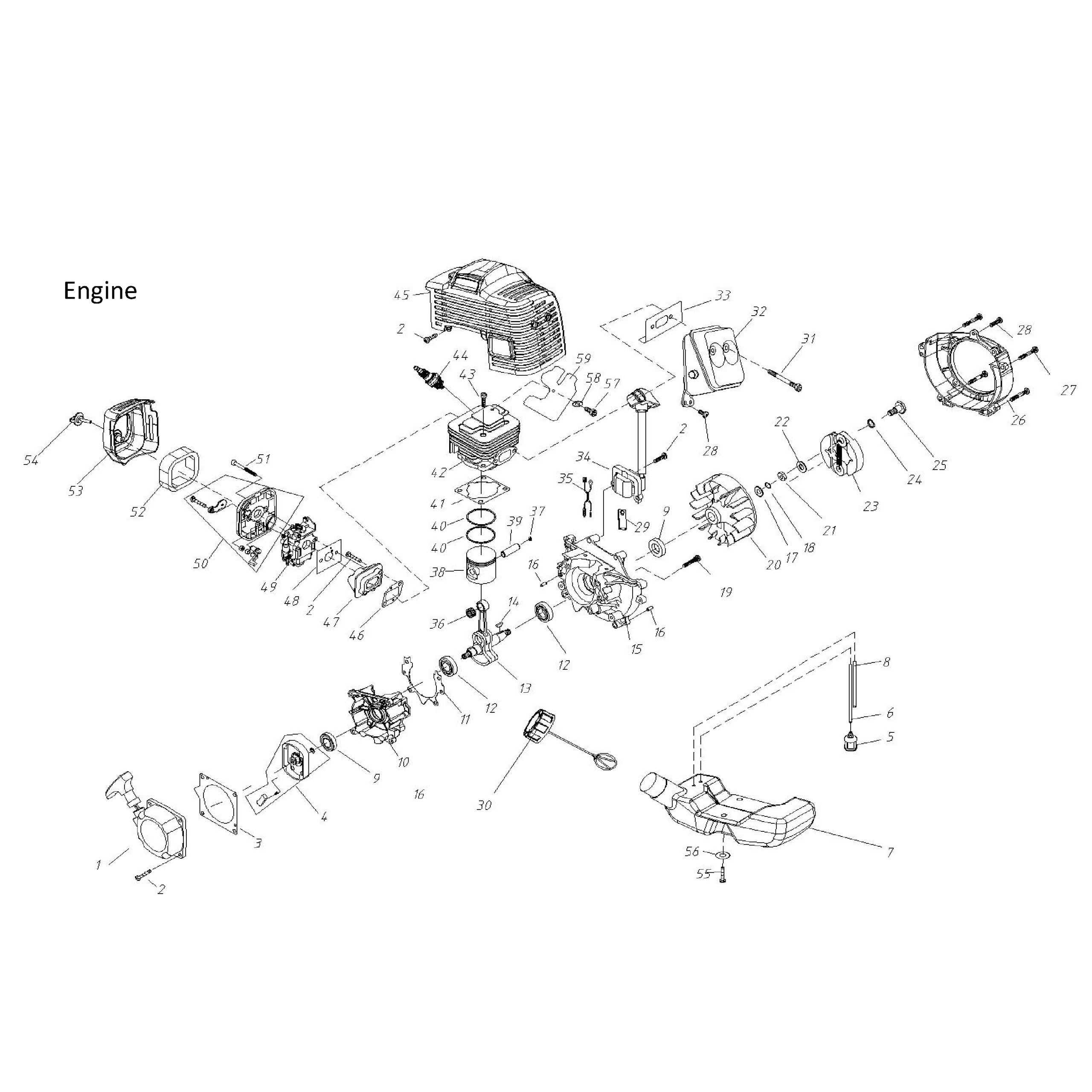

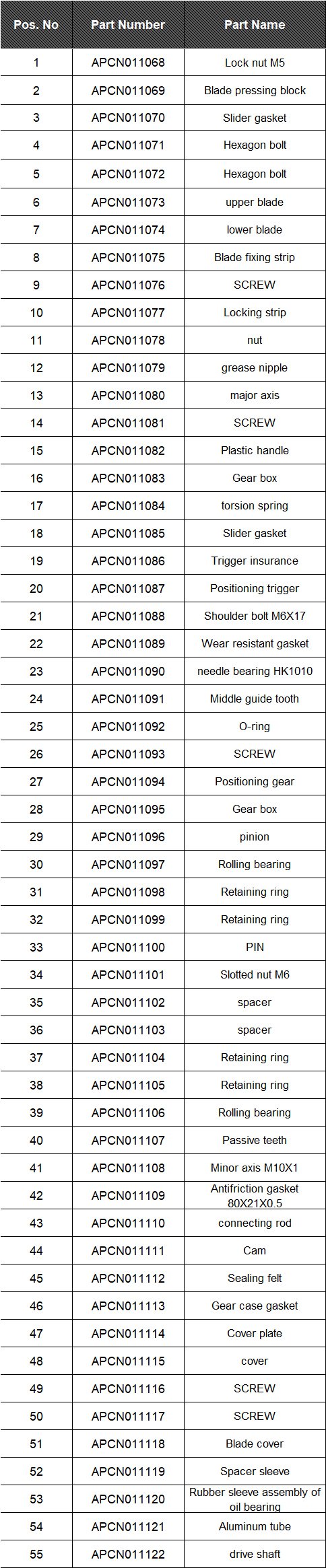

Spare Parts
Take a look below for the spare parts we have available for HAWKSMOOR 33CC PETROL MULTI TOOL
28
DRIVE SHAFT
APCN011028
£12.50
-
DRIVE SHAFT 1
APCD011028
£12.50
2
CLUTCH
APCN011002
£12.50
7
COVER
APCN011007
£2.00
17
HARNESS CLAMP
APCN011017
£5.50
23
SCREW
APCN011023
£0.80
24
CONNECTOR
APCN011024
£12.50
29
HANDLE GUARD
APCN011029
£10.00
31
STOP SWITCH ASSY
APCN011031
£12.50
35
THROTTLE CABLE
APCN011035
£12.50
60
GUARD ASSY
APCN011060
£10.00
61
BLADE
APCN011061
£13.00
Sold out
62
SPOOL ASSY
APCN011062
£17.00
63
SHOULDER STRAP
APCN011063
£10.00
-
OIL TANK COVER
APCN011153
£5.50
-
STARTER ASSY
APCN011159
£17.00
-
OIL PIPE
APCN011164
£2.00
-
FUEL TANK
APCN011165
£12.00
-
OUTLET FUEL HOSE
APCN011166
£2.00
-
OIL SEAL
APCN011167
£2.00
-
FLYWHEEL
APCN011178
£12.50
-
FUEL CAP
APCN011188
£5.50
-
AIR FILTER BASE
APCN011208
£10.00
-
AIR FILTER COVER
APCN011211
£10.00
16
HANDLE BAR LOCATING RING
APCN011016
£5.50
5
RETAINING RING
APCN011005
£2.00
18
TUBE
APCN011018
£10.00
19
DRIVE SHAFT
APCN011019
£10.00
-
COUPLING
APCN011020
£5.50
21
SCREW ASSY
APCN011021
£0.80
22
SCREW 1 ASSY
APCN011022
£0.80
25
WASHER
APCN011025
£0.80
Sold out
26
COMBINATION PIN
APCN011026
£5.50
45
BEARING
APCN011045
£2.00
30
LOCK NUT
APCN011030
£2.00
-
SCREW 2 ASSY
APCN011051
£0.80
57
BLADE PLATE
APCN011057
£5.50
59
CUTTER PLATE
APCN011059
£5.50
-
UPPER BLADE
APCN011073
£10.00
-
LOWER BLADE
APCN011074
£10.00
-
BLADE COVER
APCN011118
£12.50
-
CARB GASKET
APCN011206
£2.00
-
CARB
APCN011207
£13.50
-
AIR FILTER
APCN011201
£5.50
Sold out
8
SCREW 2 ASSY
APCN011008
£0.80
9
M5X25 BOLT/WASHER
APCN011009
£0.80
10
LOWER FIXING PLATE
APCN011010
£5.50
11
UPPER FIXING PLATE
APCN011011
£5.50
-
M6X20 BOLT/WASHER
APCN011012
£0.80
-
FUEL FILTER
APCN011163
£5.50
